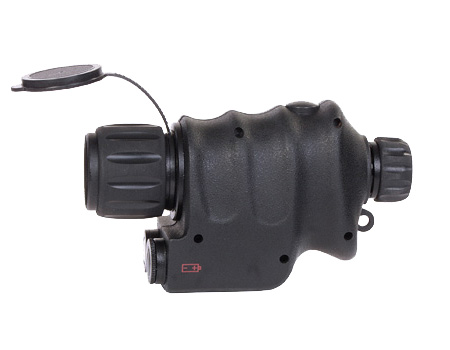

Gen 3A - ATN Night Storm 3A Black Night Monocular
 |
|
Click to enlarge image(s)
|
Description
The ATN Night Storm 3A Black Scope is the latest in technology and the newest addition to the ATN line of Night Vision products. Strict standards and precision manufacturing have brought to you a rugged, yet lightweight, waterproof Night Vision Device , which provides superior optical calibration at an economical cost.
The ATN Night Storm 3A Black Night Monocular is Revolutionizing the Night Vision market . We accomplished this by combining a 6-element, F1.2, 50mm, heavy-coated glass lens with the ability to be submersed under water. We also were able to include a number of other options to make this unit even more superior than it was already. Once you enter a completely dark where no ambient light is to be found, you can take advantage of our built-in Total Darkness Technology which our Infrared Illuminator will provide. ATN Night Storm 3A Black Night Monocular also has an optional camera adapter, which will allow you to turn a regular household camera into a Night Vision camera.
If optimal picture is what you are in the market for, the ATN Night Storm 3A Black will satisfy your needs. The unit's diopter adjustment of +/- 5 and 1 m to infinity range of focus will allow you to focus in on any object in range.
Included Accessories
Instruction Manual | Lens Tissue | Soft carrying Case | Warranty card | One Lithium Battery | Wrist Strap| Packing box | Lens Cap
FEATURES
- Waterproof
- Fast 3.5x objective lens
- Built to withstand the harshest of environments
- Ergonomically designed digital controls and shape
- Multi-coated glass optics
- Built-in Flood infrared illuminator
- Camera / camcorder adaptable
- Limited Two-Year Warranty
Specification
| Total Darkness IR System |
Yes |
| "SMART" Technology |
No |
| Multi-Purpose System |
No |
| IIT Generation |
3 |
| Photocathode Type |
Thin Film GaAs |
| Resolution |
64-72 lp/mm |
| Signal to Noise Ratio |
26 Typical |
| Figure of Merit |
1800 Typical |
| MTTF - Mean Time Before Failure |
10,000 hours |
| Magnification |
3.5x |
| Lens System |
F1.2, 50 mm |
| Proshield Lens Coating |
Yes |
| FOV |
15° |
| Range of Focus |
1 m to infinity |
| Diopter Adjustment |
-5 to +5 |
| Controls |
Digital |
| Automatic Brightness Control |
Yes |
| Bright Light Cut-off |
Yes |
| Automatic Shut-off System |
No |
| Infrared Illuminator |
Yes (Flood lens) |
| IR Indicator |
No |
| Low Battery Indicator |
No |
| Power Supply |
1 x CR123A |
| Battery Life |
50 hrs |
| Environmental Rating |
Waterproof |
| MIL-STD-810 |
No |
| Operating Temperature |
-40 to +50 °C |
| Storage Temperature |
-50 to +70 °C |
| Dimensions |
175x50x90 mm
6.9"x2"x3.5" |
| Weight |
0.4 kg / 0.88 lbs |
| Warranty |
2 years |
Tube Specifications
HIGH QUALITY 3A GEN IMAGE INTENSIFIER TUBE
DESCRIPTION Select Alpha
GENERATION 3
PHOTOCATHODE TYPE Thin Film GaAs
RESOLUTION, lp/mm * 64-72
SIGNAL TO NOISE RATIO* 26 Typical
FIGURE OF MERIT 1800 Typical
MTTF - MEAN TIME BEFORE FAILURE, hours 10,000
EXPORT N/A for Export
* Specifications are provided for informational purposes only. Actual values may vary
The ATN Night Storm 3A Black Night Monocular
